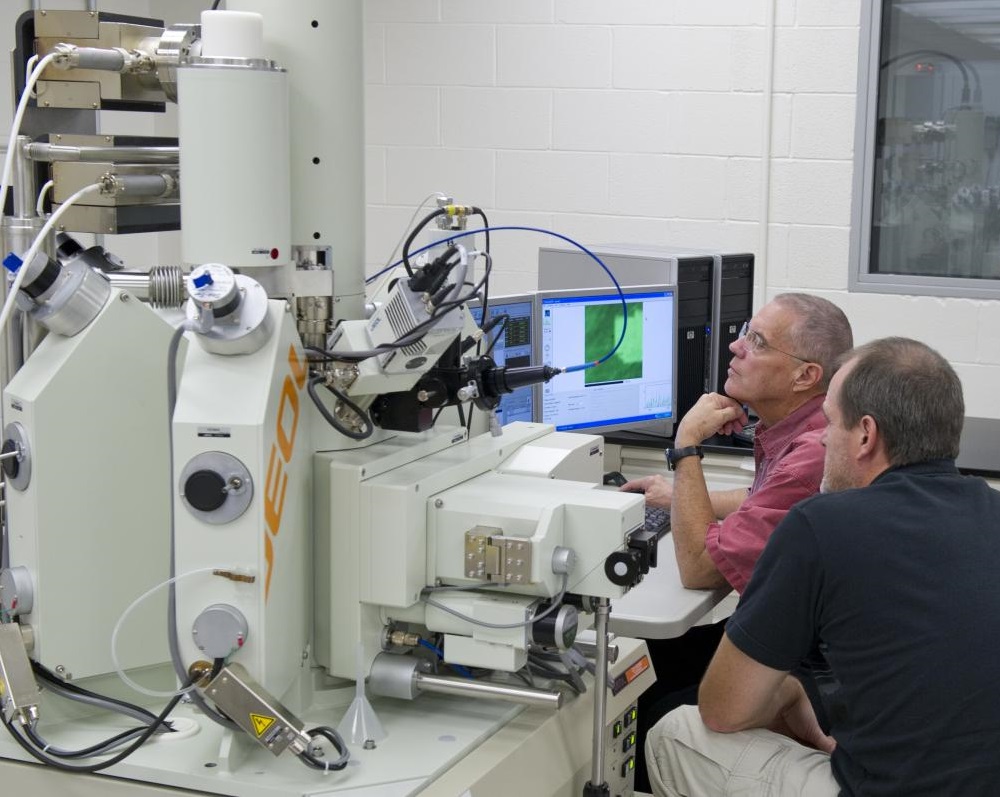

JEOL JXA-8530F Field Emission Electron Probe Microanalyzer (EPMA) with JEOL XEDS & xCLent Cathodoluminescence - This EPMA’s field emission electron gun produces a probe that is only 1/2 to 1/10 the size of that produced in a thermionic emission electron gun in a conventional EPMA, using a tungsten filament or a LaB6 tip. The FE electron gun is capable of producing a microprobe at low accelerating voltage even with high probe currents (10 to 100 nA), allowing for wavelength dispersive spectroscopy with high X-ray spatial resolution.
Key Features
Detectable Elements:
WDS: (Be*) B to U
EDS: B to U
- X-Ray Range:
WDS: 0.087 to 9.3 nm
EDS energy range: 20keV
Maximum Sample Size: 100mm x 100mm x 50mm (H)
- Accelerating Voltage: 1 to 30 kV (0.1 kV steps)
- Probe Current Range: 10-12 to 5x10-7
- Beam Current Stability: ± 0.3%/h
- 3 nm (WD 11 mm, 30kV)
Minimum Probe Size:
40nm (10kV, 1x10-8A)
100nm (10kV, 1x10-7A)
- Scanning Magnification: 40 to 300,000x (WD 11mm)
- Scanning Image Resolution: Maximum 5120 x 3840
